How to Convert a Netbook Into a Touchscreen PC

Published in the January 2010 issue.


By outfitting an off-the-shelf netbook with a touchscreen, we were able to make our own finger-friendly PC.

If the buzz is to be believed, 2010 will be the year of the touchscreen tablet PC, with multiple major manufacturers lining up products that they claim will give us a carry-anywhere way to read e-books, watch movies and surf the Web.

And while I suppose I could just buy one of these machines, I thought it’d be more fun to make my own touchscreen PC out of last year’s “it” computer: the lowly netbook. The advantage: Unlike these new tablets, my creation would also have a keyboard, making it far more practical for typing-heavy tasks like e-mail and running Word. The project’s total cost: less than $500, including the computer.

First, I needed to gear up. I bought a Lenovo IdeaPad S10-2 netbook (retail price: $350) and a Hoda Technology Solderless Touch Screen Kit ($96 from fidohub.com), which contained everything I‘d need to transform a netbook into a touch-friendly tablet. Hoda offers a variety of models that are designed to fit specific netbooks, so make sure you get the right one if you try this at home.

I wanted to be sure the new touchscreen was properly protected, so I purchased a BodyGuardz transparent scratch-proof skin, which is designed to protect touchscreens without impairing their sensitivity. Before covering the new panel, I gave it a once-over with a can of compressed air—otherwise, dirt and dust could be forever trapped under the BodyGuardz.

Taking the PC Apart
Next came the fun part. In order to wire in the new screen, I first needed to disassemble much of the netbook. I started with the easy stuff: I removed the battery, unscrewed the underbelly screws and took out the hard drive. Removing the keyboard and screen bezel was a bit trickier—they had to be pried off with a filed-down plastic knife (plastic is less likely to scratch than metal).

If you decide to take on this project, open the screen and look for a seam that runs along the side, around the entire machine, either just above or just below the USB slots. Using the knife (or a similar tool), gently pry into this seam until the case begins to separate. With the underbelly screws removed, this should be very easy. To take apart the screen bezel, look for a similar seam along the side of the display, and use the knife to pry it apart as well. The bezel should pop right off.

Of course, the new touchscreen needed to get its power from somewhere. The kit comes with an internal USB power control hub—basically a USB hub that is installed inside the computer. This hub needs to be crammed inside the machine, which can be tricky with a cramped netbook (mine fit just above the computer’s Wi-Fi card). From there, it feeds power from the motherboard to the screen. After the hub is hooked up, it will actually have two unused internal USB cords. These are free to deliver power to components. I took one and attached a Kensington Bluetooth USB Micro Adaptor (one of the smallest Bluetooth dongles on the market), giving my netbook the ability to wirelessly

Placing the Panel
Now it was time to attach the touchscreen panel. The new screen has to be placed on top of the old one with perfect alignment. To do this, I put the battery back in the computer and turned the screen on, allowing me to see the LCD’s exact borders. One side of the new touch panel comes coated with adhesive, so I pressed this side into place over the lit-up screen. After I restarted the computer, the touchscreen was working—and I was able to accurately control the cursor with my finger. But it’s smart to give it a test run before you put the computer back together—just to be sure everything is in place.

While the laptop was open, I thought it couldn’t hurt to add some upgrades—more RAM and a faster and higher capacity storage drive will help a previously sluggish netbook stave off obsolescence, at least for a little while. I upgraded my machine to 2 GB of DDR2 SDRAM and a solid-state storage drive. I was now done and ready to put it all back together again —a fairly straightforward procedure. The final product: a powerful, portable, touch-friendly computer. Did it let me do anything a normal PC couldn’t do? Not really, although that could soon change, now that developers have the ability to build touch capabilities directly into Windows 7 applications. But it did let me move away from the netbook’s cramped touchpad and keyboard and spread my hands over a spacious touchscreen. And it certainly draws stares when I pull it out at a Starbucks.




Read more...

Principles of Electricity (1945)

Click " Read more... " to see video...




Read more...

Wireless Charging Station




We showed you the Duracell incarnation of this idea a couple of months back, now there is another player in the game and its name is the Powermat. It comes in either a simple desktop form or a folding portable version, but in either case it is a mat that can charge up to 3 gadgets using magnetic induction. For the system to function all devices require a proprietary jacket or add-on, but it is a small requirement for the simplicity it brings. They even have a pretty funny commercial you can check out after the jump.






Another video from PowerMat




Read more...

Contact us

Read more...

Let's start ...

Tuesday, February 23, 2010

Coming soon
Read more...

Privacy Policy

Privacy Policy for http://new-electronic-world.blogspot.com/

If you require any more information or have any questions about our privacy policy, please feel free to contact us by email at new.electronic.world@gmail.com.

At http://new-electronic-world.blogspot.com/, the privacy of our visitors is of extreme importance to us. This privacy policy document outlines the types of personal information is received and collected by http://new-electronic-world.blogspot.com/ and how it is used.

Log Files

Like many other Web sites, http://new-electronic-world.blogspot.com/ makes use of log files. The information inside the log files includes internet protocol ( IP ) addresses, type of browser, Internet Service Provider ( ISP ), date/time stamp, referring/exit pages, and number of clicks to analyze trends, administer the site, track user’s movement around the site, and gather demographic information. IP addresses, and other such information are not linked to any information that is personally identifiable.

Cookies and Web Beacons

http://new-electronic-world.blogspot.com/ does use cookies to store information about visitors preferences, record user-specific information on which pages the user access or visit, customize Web page content based on visitors browser type or other information that the visitor sends via their browser.

DoubleClick DART Cookie

.:: Google, as a third party vendor, uses cookies to serve ads on http://new-electronic-world.blogspot.com/.
.:: Google's use of the DART cookie enables it to serve ads to users based on their visit to http://new-electronic-world.blogspot.com/ and other sites on the Internet.
.:: Users may opt out of the use of the DART cookie by visiting the Google ad and content network privacy policy at the following URL - http://www.google.com/privacy_ads.html

Some of our advertising partners may use cookies and web beacons on our site. Our advertising partners include ....
Google Adsense


These third-party ad servers or ad networks use technology to the advertisements and links that appear on http://new-electronic-world.blogspot.com/ send directly to your browsers. They automatically receive your IP address when this occurs. Other technologies ( such as cookies, JavaScript, or Web Beacons ) may also be used by the third-party ad networks to measure the effectiveness of their advertisements and / or to personalize the advertising content that you see.


http://new-electronic-world.blogspot.com/ has no access to or control over these cookies that are used by third-party advertisers.

You should consult the respective privacy policies of these third-party ad servers for more detailed information on their practices as well as for instructions about how to opt-out of certain practices. http://new-electronic-world.blogspot.com/'s privacy policy does not apply to, and we cannot control the activities of, such other advertisers or web sites.

If you wish to disable cookies, you may do so through your individual browser options. More detailed information about cookie management with specific web browsers can be found at the browsers' respective websites.
Read more...

Everyday Practical Electronics 2009

Monthly magazine




This is very useful magazine and i find it very important
Download links below:


Read more...

MikroC for PIC Full

Sunday, February 21, 2010


MikroC PRO for PIC - a powerful tool for programming
PIC microcontrollers in C. It is designed to allow
the programmer to the labor-intensive solutions
to create applications for embedded systems.

Download
Password:New-Electronic-World.blogspot.com





Read more...

Proteus Professional 7.6



Proteus Professional - software for automated design of electronic circuits. The package is a
system of circuit simulation, based on the models of electronic components in PSpice. A distinctive feature of the package Proteus Professional is the possibility of modeling of the programmable devices: microcontrollers, microprocessors, DSP and others. Additionally, the package of Proteus Professional is a system design of printed circuit boards. Proteus Professional can simulate the following microcontrollers: 8051, ARM7, AVR, Motorola, PIC, Basic Stamp. The library contains the components of reference data

Co-simulation of microprocessor software within a mixed mode SPICE simulator.

• Available for PIC, 8051, AVR, HC11, ARM7/LPC2000 and Basic Stamp processors.
• See your code interact with simulated hardware in real-time.
• Interactive peripheral models for displays, keypads, etc.
• Over 8000 analogue and digital device models.
• Extensive single step and debugging facilities including system wide diagnostics.
• Works with popular compilers and assemblers.

Download
Password:New-Electronic-World.blogspot.com

Read more...

Lesson 1 .... Introduction.

Saturday, February 20, 2010

Welcome to the start of the PIC Tutorial. These pages will take you form the basic structure of the device, right through to programming methods and techniques. Also, there will be suggestions on how to modify the code so that you can adapt the PIC to suit your applications within Cybot. We will not be including any internal architecture diagrams, as this may only lead to confusion. If you want to look at the datasheet, then this can be downloaded from Microchips' web site.

Microchip PIC 16F84 Microcontroller

Microchip manufacture a series of microcontrollers called PIC. You can see the range of their microcontrollers here. There are many different flavours available, some basic low memory types, going right up through to ones that have Analogue - To- Digital converters and even PWM built in. We are going to concentrate on the 16F84 PIC. Once you have learnt how to program one type of PIC, learning the rest is easy.

There are several ways of programming the PIC - using BASIC, C, or Assembly Language. We are going to show you the Assembly Language. Don't be put off by this. There are only 35 instructions to learn, and it is the cheapest way to program the PICs, as you do not need any extra software other than the freebies.


The 16F84 Pins

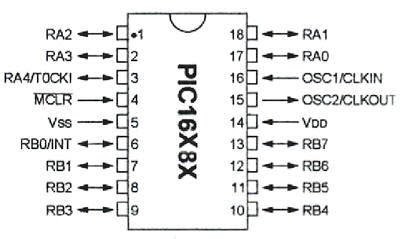

Below is a diagram showing the pin-outs of the PIC 16F84. We will go through each pin, explaining what each is used for.

RA0 To RA4
RA is a bidirectional port. That is, it can be configured as an input or an output. The number following RA is the bit number (0 to 4). So, we have one 5-bit directional port where each bit can be configured as Input or Output.

RB0 To RB7
RB is a second bidirectional port. It behaves in exactly the same way as RA, except there are 8 - bits involved.

VSS And VDD
These are the power supply pins. VDD is the positive supply, and VSS is the negative supply, or 0V. The maximum supply voltage that you can use is 6V, and the minimum is 2V

OSC1/CLK IN And OSC2/CLKOUT
These pins is where we connect an external clock, so that the microcontroller has some kind of timing.

MCLR
This pin is used to erase the memory locations inside the PIC (i.e. when we want to re-program it). In normal use it is connected to the positive supply rail.

INT
This is an input pin which can be monitored. If the pin goes high, we can cause the program to restart, stop or any other single function we desire. We won't be using this one much.

T0CK1
This is another clock input, which operates an internal timer. It operates in isolation to the main clock. Again, we won't be using this one much either.

Read more...

Robotics and Electronics Tutorial

This is a series tutorials to know every thing about:

1 - The Multimeter.
2 - More on Multimeter.
3 - Choosing a Battery.
4 - Testing the Battery.
5 - Alligator Clips.
6 - Intro to Resistors.
7 - Testing Resistors.
8 - Resistor Color Bands.
9 - Choosing LED's.
10 - Building a Circuit.
11 - LED's Gone Bad.
12 - Measuring Voltage.
13 - Measuring Current.
14 - Intro to Breadboard.
15 - More on Breadboard.
16 - Breadboard Circuit.
17 - Potentiometers.
18 - Testing a Trimpot.

Let's Go ...


1 - The Multimeter.


2 - More on Multimeter.


3 - Choosing a Battery.


4 - Testing the Battery.


5 - Alligator Clips.


6 - Intro to Resistors.


7 - Testing Resistors.


8 - Resistor Color Bands.


9 - Choosing LED's.


10 - Building a Circuit.


11 - LED's Gone Bad.


12 - Measuring Voltage.


13 - Measuring Current.


14 - Intro to Breadboard.


15 - More on Breadboard.


16 - Breadboard Circuit.


17 - Potentiometers.


18 - Testing a Trimpot.
Read more...

Relays


relay symbol
Circuit symbol for a relay
Relay,  photograph © Rapid Electronics
Relay,  photograph © Rapid Electronics
Relays


working  relay
Relay showing coil and switch contacts
A relay is an electrically operated switch. Current flowing through the coil of the relay creates a magnetic field which attracts a lever and changes the switch contacts. The coil current can be on or off so relays have two switch positions and most have double throw (changeover) switch contacts as shown in the diagram.

Relays allow one circuit to switch a second circuit which can be completely separate from the first. For example a low voltage battery circuit can use a relay to switch a 230V AC mains circuit. There is no electrical connection inside the relay between the two circuits, the link is magnetic and mechanical.

The coil of a relay passes a relatively large current, typically 30mA for a 12V relay, but it can be as much as 100mA for relays designed to operate from lower voltages. Most ICs (chips) cannot provide this current and a transistor is usually used to amplify the small IC current to the larger value required for the relay coil. The maximum output current for the popular 555 timer IC is 200mA so these devices can supply relay coils directly without amplification.

Relays are usuallly SPDT or DPDT but they can have many more sets of switch contacts, for example relays with 4 sets of changeover contacts are readily available. For further information about switch contacts and the terms used to describe them please see the page on switches.

Most relays are designed for PCB mounting but you can solder wires directly to the pins providing you take care to avoid melting the plastic case of the relay.

The supplier's catalogue should show you the relay's connections. The coil will be obvious and it may be connected either way round. Relay coils produce brief high voltage 'spikes' when they are switched off and this can destroy transistors and ICs in the circuit. To prevent damage you must connect a protection diode across the relay coil.

The animated picture shows a working relay with its coil and switch contacts. You can see a lever on the left being attracted by magnetism when the coil is switched on. This lever moves the switch contacts. There is one set of contacts (SPDT) in the foreground and another behind them, making the relay DPDT.



Read more...

Diodes

Example: Diodes Circuit symbol: Diode circuit  symbol

Signal diodes are also used to protect transistors and ICs from the brief high voltage produced when a relay coil is switched off. The diagram shows how a protection diode is connected 'backwards' across the relay coil.

Current flowing through a relay coil creates a magnetic field which collapses suddenly when the current is switched off. The sudden collapse of the magnetic field induces a brief high voltage across the relay coil which is very likely to damage transistors and ICs. The protection diode allows the induced voltage to drive a brief current through the coil (and diode) so the magnetic field dies away quickly rather than instantly. This prevents the induced voltage becoming high enough to cause damage to transistors and ICs.


DiodeMaximum
Current
Maximum
Reverse
Voltage
1N40011A50V
1N40021A100V
1N40071A1000V
1N54013A100V
1N54083A1000V

Rectifier diodes (large current)

Rectifier diodes are used in power supplies to convert alternating current (AC) to direct current (DC), a process called rectification. They are also used elsewhere in circuits where a large current must pass through the diode.

All rectifier diodes are made from silicon and therefore have a forward voltage drop of 0.7V. The table shows maximum current and maximum reverse voltage for some popular rectifier diodes. The 1N4001 is suitable for most low voltage circuits with a current of less than 1A.



Operation of a Bridge Rectifier

Bridge rectifiers

There are several ways of connecting diodes to make a rectifier to convert AC to DC. The bridge rectifier is one of them and it is available in special packages containing the four diodes required. Bridge rectifiers are rated by their maximum current and maximum reverse voltage. They have four leads or terminals: the two DC outputs are labelled + and -, the two AC inputs are labelled ~.

The diagram shows the operation of a bridge rectifier as it converts AC to DC. Notice how alternate pairs of diodes conduct.


Bridge  Rectifier photograph © Rapid Electronics Bridge Rectifier photograph © Rapid Electronics Bridge Rectifier photograph © Rapid Electronics Bridge Rectifier photograph © Rapid Electronics Bridge Rectifier photograph © Rapid Electronics
Various types of Bridge Rectifiers
Note that some have a hole through their centre for attaching to a heat sink



Zener diodes

Example: Zener diode Circuit symbol: Zener diode  circuit symbol
a = anode, k = cathode

Zener  diode circuit Zener diodes are used to maintain a fixed voltage. They are designed to 'breakdown' in a reliable and non-destructive way so that they can be used in reverse to maintain a fixed voltage across their terminals. The diagram shows how they are connected, with a resistor in series to limit the current.

Zener diodes can be distinguished from ordinary diodes by their code and breakdown voltage which are printed on them. Zener diode codes begin BZX... or BZY... Their breakdown voltage is printed with V in place of a decimal point, so 4V7 means 4.7V for example.

Zener diodes are rated by their breakdown voltage and maximum power:

  • The minimum voltage available is 2.4V.
  • Power ratings of 400mW and 1.3W are common.

Read more...

Switches

Selecting a Switch

There are three important features to consider when selecting a switch:
  • Contacts (e.g. single pole, double throw)
  • Ratings (maximum voltage and current)
  • Method of Operation (toggle, slide, key etc.)

Standard Switches

Type of Switch Circuit Symbol Example
ON-OFF
Single Pole, Single Throw = SPST

A simple on-off switch. This type can be used to switch the power supply to a circuit.

When used with mains electricity this type of switch must be in the live wire, but it is better to use a DPST switch to isolate both live and neutral.


SPST on-off  switch symbol SPST  toggle switch, photograph © Rapid Electronics
SPST toggle switch
(ON)-OFF
Push-to-make = SPST Momentary

A push-to-make switch returns to its normally open (off) position when you release the button, this is shown by the brackets around ON. This is the standard doorbell switch.

P

push-to-make  switch symbol Push-to-make switch, photograph © Rapid Electronics
Push-to-make switch
ON-(OFF)
Push-to-break = SPST Momentary

A push-to-break switch returns to its normally closed (on) position when you release the button.


push-to-break  switch symbol Push-to-break switch, photograph © Rapid Electronics
Push-to-break switch
ON-ON
Single Pole, Double Throw = SPDT

This switch can be on in both positions, switching on a separate device in each case. It is often called a changeover switch. For example, a SPDT switch can be used to switch on a red lamp in one position and a green lamp in the other position.

A SPDT toggle switch may be used as a simple on-off switch by connecting to COM and one of the A or B terminals shown in the diagram. A and B are interchangeable so switches are usually not labelled.

ON-OFF-ON
SPDT Centre Off
A special version of the standard SPDT switch. It has a third switching position in the centre which is off. Momentary (ON)-OFF-(ON) versions are also available where the switch returns to the central off position when released.


SPDT switch  symbol SPDT  toggle switch, photograph © Rapid Electronics
SPDT toggle switch

SPDT slide switch, photograph © Rapid Electronics
SPDT slide switch
(PCB mounting)

SPDT  rocker switch, photograph © Rapid Electronics
SPDT rocker switch

Dual ON-OFF
Double Pole, Single Throw = DPST

A pair of on-off switches which operate together (shown by the dotted line in the circuit symbol).

A DPST switch is often used to switch mains electricity because it can isolate both the live and neutral connections.


DPST switch  symbol DPST  rocker switch, photograph © Rapid Electronics
DPST rocker switch
Dual ON-ON
Double Pole, Double Throw = DPDT

A pair of on-on switches which operate together (shown by the dotted line in the circuit symbol).

A DPDT switch can be wired up as a reversing switch for a motor as shown in the diagram.

ON-OFF-ON
DPDT Centre Off
A special version of the standard SPDT switch. It has a third switching position in the centre which is off. This can be very useful for motor control because you have forward, off and reverse positions. Momentary (ON)-OFF-(ON) versions are also available where the switch returns to the central off position when released.


DPDT switch  symbol DPDT  slide switch, photograph © Rapid Electronics
DPDT slide switch

Reversing switch

Wiring for Reversing Switch



Special Switches

Type of Switch Example
Push-Push Switch (e.g. SPST = ON-OFF)

This looks like a momentary action push switch but it is a standard on-off switch: push once to switch on, push again to switch off. This is called a latching action.


Push-push switch, photograph © Rapid Electronics
Microswitch (usually SPDT = ON-ON)

Microswitches are designed to switch fully open or closed in response to small movements. They are available with levers and rollers attached.


Microswitch, photograph © Rapid Electronics
Keyswitch

A key operated switch. The example shown is SPST.


Keyswitch, photograph © Rapid Electronics
Tilt Switch (SPST)

Tilt switches contain a conductive liquid and when tilted this bridges the contacts inside, closing the switch. They can be used as a sensor to detect the position of an object. Some tilt switches contain mercury which is poisonous.


Tilt  switch, photograph © Rapid Electronics
Reed Switch (usually SPST)

The contacts of a reed switch are closed by bringing a small magnet near the switch. They are used in security circuits, for example to check that doors are closed. Standard reed switches are SPST (simple on-off) but SPDT (changeover) versions are also available.

Warning: reed switches have a glass body which is easily broken!


Reed  switches photograph © Rapid Electronics
DIP Switch (DIP = Dual In-line Parallel)

This is a set of miniature SPST on-off switches, the example shown has 8 switches. The package is the same size as a standard DIL (Dual In-Line) integrated circuit.

This type of switch is used to set up circuits, e.g. setting the code of a remote control.


DIP  switch, photograph © Rapid Electronics
Multi-pole Switch

The picture shows a 6-pole double throw switch, also known as a 6-pole changeover switch. It can be set to have momentary or latching action. Latching action means it behaves as a push-push switch, push once for the first position, push again for the second position etc.


Multi-pole switch, photograph © Rapid Electronics
Multi-way Switch

Multi-way switches have 3 or more conducting positions. They may have several poles (contact sets). A popular type has a rotary action and it is available with a range of contact arrangements from 1-pole 12-way to 4-pole 3 way.

The number of ways (switch positions) may be reduced by adjusting a stop under the fixing nut. For example if you need a 2-pole 5-way switch you can buy the 2-pole 6-way version and adjust the stop.

Contrast this multi-way switch (many switch positions) with the multi-pole switch (many contact sets) described above.


Multi-way rotary switch, photograph © Rapid Electronics

Multi-way rotary switch

Multi-way switch symbol

1-pole 4-way switch symbol


Read more...
